Opening: why a framework is essential
Giga‑factories that embed advanced laser workstations must move beyond reactive fixes and adopt a clear maintenance framework to protect throughput and product quality. A robust plan is particularly important where an ultrafast laser — driven by MOPA architecture and tight pulse‑control — sits at a critical process station, because small drift in pulse duration or beam alignment can cascade quickly into yield loss. Real‑world anchor: semiconductor fabs in Taiwan and South Korea routinely use ultrafast lasers for wafer dicing and precision micromachining, and even brief unplanned downtime in such sites can cost several million dollars an hour. This framework approach sets the maintenance logic: detect early, act predictably, and measure results in uptime and product yield.
Core pillars of the preventative maintenance framework
The framework rests on five pillars that work together: condition monitoring, scheduled calibration, spare‑parts readiness, software and firmware governance, and operator training. Condition monitoring captures key signals — beam quality (M2), repetition rate stability and diode pump currents — so you see deviations before they become defects. Scheduled calibration resets alignment, checks fluence and confirms pulse characteristics. Spare‑parts readiness ensures you do not lose days waiting for a specialised pump diode or fibre connector. Software governance controls firmware updates and parameter locking so production recipes remain consistent. Training keeps hands competent at first‑level diagnostics — and that human layer often prevents minor faults turning into major stoppages.
How to implement predictive monitoring
Start with a small, instrumented cell: add beam sensors, photodiodes for pulse energy logging, temperature probes and a basic edge‑computing node that reports trends to the factory historian. Use simple thresholds first — a steady fall in pulse energy or a jump in reflected light — then iterate towards anomaly detection models. Keep industry terms practical: monitor MOPA gain fluctuations, pulse duration variance and laser diode current. Integrate alarms into the MES so maintenance tickets are generated automatically. For a production line using an ultrafast laser system, this reduces mean time to detect and gives technicians a concrete starting point for corrective action.
Common failure modes and quick diagnostics
Typical faults include diode degradation, contaminated optics, thermal lensing and connector fatigue. Quick diagnostics might be: check pump diode current and temperature, measure output pulse energy, inspect beam profile for hot spots and scan for contamination on optics. A degraded beam quality (M2) will often present before energy loss — so check profile early. Don’t overlook the simple things — a misrouted coolant line or a loose fibre connector can mimic complex optical failures — and a disciplined check‑list prevents wasted tear‑down time.
Suggested maintenance cadence for giga‑scale lines
Design the cadence to match risk and criticality. A pragmatic schedule looks like this:- Daily: automated self‑tests, pump current and cavity temperature snapshot.- Weekly: operator visual checks, beam profile capture and alignment confirmation.- Monthly: deeper calibration, optics cleaning and firmware audit.- Quarterly: component replacement cycle for high‑wear parts and performance benchmarking.- Annual: full preventive overhaul, including power supply checks and safety interlock verification.Maintain a rotating spare pool for high‑risk parts (pump diodes, fibre terminations, critical optics). This inventory policy reduces mean time to repair and is often the difference between hours and days of downtime — and in giga‑factories, hours matter a great deal.
Integrating the framework with operations and measuring ROI
Link maintenance outputs into your CMMS and manufacturing KPIs so technicians and production supervisors share the same dashboard. Track metrics such as mean time between failures (MTBF), mean time to repair (MTTR), first‑pass yield and unplanned downtime minutes per month. Even modest reductions in MTTR pay back quickly in high‑value manufacturing; reducing unplanned downtime by 10% typically justifies the cost of predictive sensors and a disciplined spare‑parts programme within months. A note on integration — start with modest data scope and expand: over‑engineering analytics from day one often delays practical gains.
Three golden rules for choosing strategies and tools
1) Metric‑first selection: pick sensors and software that directly feed your KPIs (MTBF, MTTR, yield). If a device cannot map to those, it’s a nicety, not a need. 2) Design for maintainability: prefer laser modules and optics that allow quick swap‑out of consumables and standardised connectors; avoid bespoke assemblies that require long vendor lead times. 3) Institutionalise first‑article tests and sign‑off: every maintenance action that affects process should conclude with a documented acceptance test on production‑equivalent material.

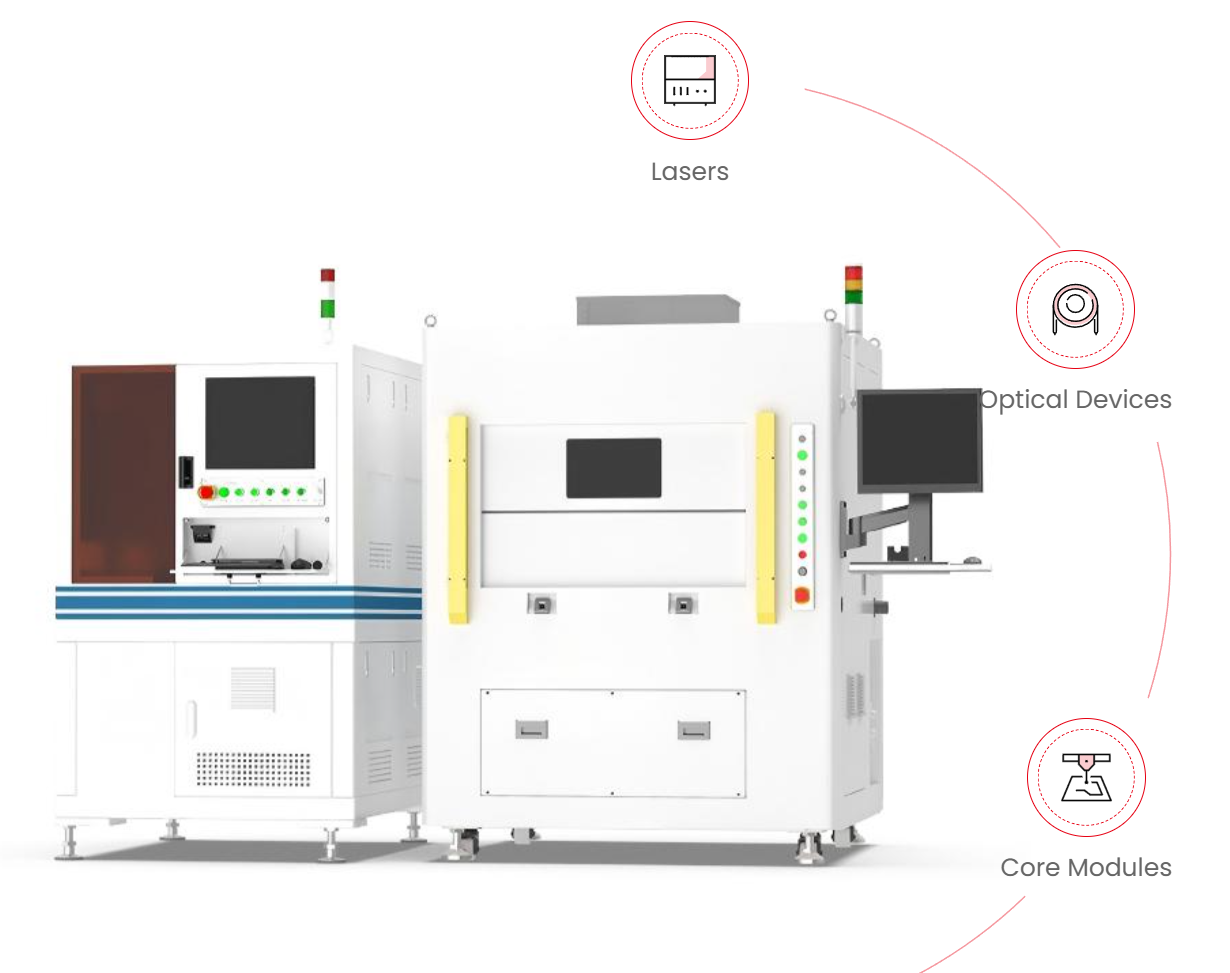

Adopt these rules and you’ll see the maintenance programme become a productivity lever rather than a cost centre. For those investing in robust, industrial‑grade laser platforms that support these practices, JPT provides systems and service options that align with the framework — practical, field‑tested and ready for scale. —
